Learn spatial transformation mathematics through 6-DOF industrial robot programming, covering rotation matrices, Euler angle sequences, homogeneous transformations, and complex 3D orientation control.
By the end of this lesson, you will be able to:
Advanced manufacturing requires 6-DOF industrial robots capable of complex tool orientations. From aerospace composite layup to automotive welding, these robots must precisely control both position and orientation simultaneously, often following complex 3D curves while maintaining specific tool angles relative to workpiece surfaces.
6-DOF Industrial Robot Architecture:
Complex manufacturing operations require:
Engineering Question: How do we mathematically represent and control complex 3D tool orientations while avoiding singularities and maintaining smooth motion for advanced manufacturing operations?
Consequences of Poor Orientation Control:
Benefits of Systematic 3D Analysis:
3D rotations are more complex than 2D because rotation order matters and multiple representations exist. Basic rotations about coordinate axes provide the building blocks for all spatial orientations. Following the established axis convention where counterclockwise rotation is positive, we can derive rotation matrices for each coordinate axis. Each rotation transforms a mobile frame (A, B, C) relative to a fixed frame (X, Y, Z).
Rotation about X-axis by angle α:
Geometric Analysis:
After rotating axis B:
After rotating axis C:
Transformation Summary:
| Before | After |
|---|---|
| A(1,0,0) | A(1,0,0) |
| B(0,1,0) | B(0, cos α, sin α) |
| C(0,0,1) | C(0, -sin α, cos α) |
🔄 X-Axis Rotation Matrix

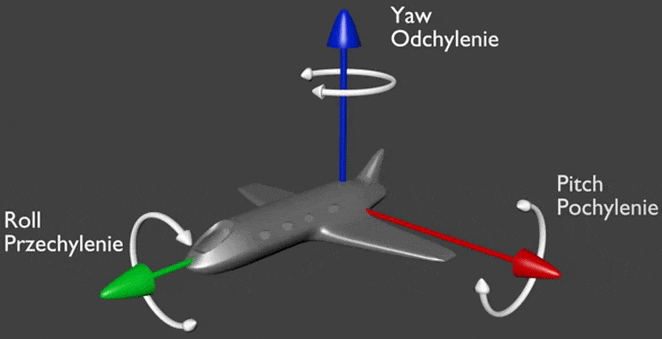

Physical Meaning: Rotation about X-axis corresponds to “roll” motion - like an aircraft banking left or right. Rotates vectors around the X-axis, leaving X-coordinates unchanged while rotating Y and Z components in the YZ-plane.
Rotation about Y-axis by angle β:
Geometric Analysis:
After rotating axis A:
After rotating axis C:
Transformation Summary:
| Before | After |
|---|---|
| A(1,0,0) | A(cos β, 0, -sin β) |
| B(0,1,0) | B(0,1,0) |
| C(0,0,1) | C(sin β, 0, cos β) |
🔄 Y-Axis Rotation Matrix
Physical Meaning: Rotation about Y-axis corresponds to “pitch” motion - like an aircraft nose up or down. Rotates vectors around the Y-axis, leaving Y-coordinates unchanged while rotating X and Z components in the XZ-plane.
Rotation about Z-axis by angle γ:
Geometric Analysis:
After rotating axis A:
After rotating axis B:
Transformation Summary:
| Before | After |
|---|---|
| A(1,0,0) | A(cos γ, sin γ, 0) |
| B(0,1,0) | B(-sin γ, cos γ, 0) |
| C(0,0,1) | C(0,0,1) |
🔄 Z-Axis Rotation Matrix
Physical Meaning: Rotation about Z-axis corresponds to “yaw” motion - like an aircraft turning left or right. Rotates vectors around the Z-axis, leaving Z-coordinates unchanged while rotating X and Y components in the XY-plane.
Point rotation about X-axis:
Problem: Point q = (3, 7, 5) rotated 60° about X-axis
Solution:
Point rotation about Y-axis:
Problem: Point p = (4, 4, 2√3) in mobile frame rotated 60° about Y-axis
Solution:
Point rotation about Z-axis:
Problem: Point p = (7, 6, 5) rotated 30° about Z-axis
Solution:
Inverse transformations (world to body coordinates):
For Y-axis rotation: Mobile frame rotated 60° about Y-axis
Problem: Points p_xyz = (2, 3, 6) and q_xyz = (4, 2, 5) in fixed frame
Solution:
Since rotation matrices are orthogonal:
Problem: Given rotation matrix, determine axis and angle
Example matrix:
Analysis steps:
Robot joint control application:
Problem: Single-axis robot with mobile frame point p_M = (2, 2, 8)
Find coordinates when:
Solutions:
Coordinate system transformation:
Problem: Robot frame rotated 60° about X-axis Point Q = (4, 2√3, 5) in base coordinates
Find mobile frame coordinates:
📐 Essential Rotation Matrix Properties
Orthogonality:
Physical Meaning: Rotation matrices preserve lengths and angles, representing pure rotations without scaling or reflection in 3D space.
Extending the 2D homogeneous coordinate concept to 3D, we use 4×4 matrices to unify rotation and translation into a single mathematical operation. This powerful framework is the foundation for all modern robot kinematics and computer graphics.
🎯 Spatial Transformation Matrix
General 4×4 transformation:
Where:
Physical Meaning: 4×4 matrices unify rotation and translation into single mathematical operation for 3D spatial transformations.
Real robot control requires precise composition of multiple rotations and translations in 3D space. Understanding the systematic rules for matrix multiplication order is essential for accurate end-effector positioning and complex trajectory programming.
🔧 3D Transformation Composition Rules
Matrix multiplication is non-commutative - order matters!
For robot positioning with multiple transformations:
General composition:
Where transformations are applied in sequence: H_1 first, H_n last.
Problem: 40° rotation about X-axis, then 7 units translation along mobile B-axis
Setup: H = H(x,40°) · I · H(B,7)
Matrix composition:
Final result:
Problem: Complex robotic motion sequence
Matrix sequence: H = H(x,4) · H(x,50°) · I · H(c,-6) · H(b,25°)
Step-by-step computation:
Final transformation matrix:
System setup: Robotic work cell with camera and 6-joint robot
Given transformation matrices:
Object position relative to robot base:
Object position relative to gripper:
Euler angles provide an intuitive way to describe 3D orientations using three sequential rotations about coordinate axes. However, different sequences exist and singularities must be carefully managed. Additionally, the terminology (roll, pitch, yaw) depends heavily on which coordinate system convention is being used.
🎯 ZYX Euler Angles
Sequential rotations:
Combined rotation matrix:
Physical Meaning: Commonly used in robotics and computer graphics. The sequence applies Z rotation first, then Y rotation, then X rotation.
Note: Matrix multiplication order is right-to-left, so
🎯 ZYZ Euler Angles (Classical)
Sequential rotations:
Combined rotation matrix:
Physical Meaning: Classical mechanics convention, particularly useful for:
Advantage: Often more natural for systems with cylindrical or axial symmetry.
Gimbal Lock phenomenon:
ZYX singularity: β = ±90° (pitch vertical - looking straight up or down) ZYZ singularity: β = 0° or 180° (middle Y-rotation collapses)
At singularity:
Avoidance strategies:
To perform rotation about an arbitrary axis through the origin, we extend the individual axis rotation concepts to handle any vector direction. This fundamental capability enables complete 3D orientation control for advanced robotics applications.
Problem Setup: Given a fixed frame OXYZ and an arbitrary rotation axis V = (x,y,z) with components V_x, V_y, V_z, we need to construct the rotation matrix R(V,θ) for rotation angle θ.
🔄 Arbitrary Axis Rotation Strategy
Five-step decomposition process:
Matrix composition: R(V,θ) = R(x,-α) R(y,β) R(z,θ) R(y,-β) R(x,α)
The complete rotation matrix:
Geometric relationships: For unit vector |V| = 1:
⚡ Simplified Arbitrary Axis Formula
Final rotation matrix in compact form:
Where: C = cos θ, S = sin θ, T = (1 - cos θ)
Unit vector components:
Calculate unit vector components:
Calculate trigonometric values:
Compute matrix elements:
Final rotation matrix:
Calculate vector magnitude and unit components:
Calculate trigonometric values:
Compute matrix elements (showing key calculations):
Final rotation matrix:
⚡ Rodrigues' Rotation Formula
Alternative approach using matrix exponentials:
Where:
Note: Rodrigues formula only works for rotations about axes through the origin.
Arbitrary axis rotation capabilities are essential for advanced 6-DOF robot programming, tool orientation control, and complex trajectory planning where rotations cannot be decomposed into simple XYZ sequences.
Key applications:
🎯 Spatial Transformation Matrix
General 4×4 transformation:
Where:
Physical Meaning: 4×4 matrices unify rotation and translation into single mathematical operation for 3D spatial transformations.
Let’s program complex tool orientations for aerospace composite layup.
System Parameters:
0.1 mm position and 1° orientation tolerance50 mm/s with continuous motion requirementDenavit-Hartenberg parameter table:
| Joint | θᵢ | dᵢ (mm) | aᵢ (mm) | αᵢ |
|---|---|---|---|---|
| 1 | θ₁ | 645 | 270 | -90° |
| 2 | θ₂ | 0 | 1150 | 0° |
| 3 | θ₃ | 0 | 115 | -90° |
| 4 | θ₄ | 1220 | 0 | 90° |
| 5 | θ₅ | 0 | 0 | -90° |
| 6 | θ₆ | 215 | 0 | 0° |
Individual transformation matrices:
Standard DH transformation matrix: Each link transformation uses the 4×4 homogeneous matrix with DH parameters:
Forward kinematics solution:
Result: End-effector position and orientation as function of joint angles
Tool frame inclusion:
Where
Surface parametrization:
Wing surface defined by parametric equations:
Where u, v are surface parameters
Surface normal calculation:
Normalized:
Tool orientation matrix construction:
Given desired tool axis alignment with surface normal:
Rotation matrix assembly:
This matrix represents required tool orientation
ZYX Euler angle extraction from rotation matrix:
Given rotation matrix
Singularity detection:
Condition:
Alternative extraction when singular:
Smooth orientation interpolation:
SLERP (Spherical Linear Interpolation) for rotations:
Where
Alternative: Quaternion interpolation:
Convert to quaternions, interpolate, convert back:
Geometric approach for positions:
Wrist position calculation:
Where
First three joints (position):
Using geometric relationships:
Last three joints (orientation):
Wrist orientation matrix:
Joint angles from rotation matrix:
Multiple solution handling:
Typically 8 solutions exist (2³ configurations)
Selection criteria: Minimize joint motion, avoid limits, consider obstacles
Orientation Control
Surface alignment: ±1° accuracy achieved
Smooth interpolation: SLERP/quaternion methods
Singularity handling: Multiple representation strategies
Status: Precision orientation control
Mathematical Framework
Rotation matrices: Systematic 3D representation
Euler angles: Intuitive but singularity-prone
Homogeneous transforms: Unified spatial operations
Status: Complete 3D mathematics
Inverse Kinematics
Multiple solutions: 8 typical configurations
Selection optimization: Criteria-based choice
Real-time capability: Geometric methods
Status: Robust solution methods
Understanding robot workspace in 3D requires analyzing both reachable positions and achievable orientations. Unlike 2D planar robots, 6-DOF systems have complex workspace boundaries determined by joint limits and kinematic constraints.
Primary workspace: All points reachable with at least one orientation
Secondary workspace: All points reachable with multiple orientations
Dexterous workspace: All points reachable with any orientation
Analysis method:
At each position, determine achievable orientations:
Visualization: Unit sphere showing reachable tool orientations Constraints: Joint limits, collision avoidance, singularities
Boundary singularities: At workspace boundaries
Interior singularities: Within workspace (wrist singularities)
Algorithmic detection: Jacobian determinant approaches zero
Common 6-DOF singularities:
Jacobian condition monitoring:
Where σ are singular values of Jacobian matrix
Geometric indicators:
Path planning:
Real-time handling:
When singularity occurs:
Prevention better than cure!
Matrix operations:
Numerical stability:
Orientation smoothness:
Joint coordination:
Welding applications:
Machining applications:
In this lesson, you learned to:
Key 3D Insights:
Critical Foundation: 4×4 transformation matrices enable systematic spatial motion representation
Coming Next: In Lesson 4, we’ll develop systematic kinematic modeling using elementary matrices and DH parameters for Stewart Platform analysis, providing a structured approach to complex parallel mechanism design.
